• Roof rails
• Painted body-color upper/Medium Dark Platinum lower bumpers
• Black running boards
• Medium Dark Platinum lower body-side cladding
• Medium Dark platinum grille
• Body-color door handles
• Fog lamps
• Complex reflector headlamps w/autolamp feature
• Black pwr mirrors w/security approach lamps
• Privacy glass
• Speed-sensitive intermittent windshield wipers
• Rear window intermittent wiper w/washer
• Rear liftgate w/flip-up glass

• Cloth 60/40 split front bench seat-inc: 6-way pwr driver seat, dual manual lumbar, manual recline
• Cloth 2nd row 40/20/40 split bench seat-inc: sliding center portion, recline & fold flat feature, carpeted seatbacks, easy-entry to 3rd row feature

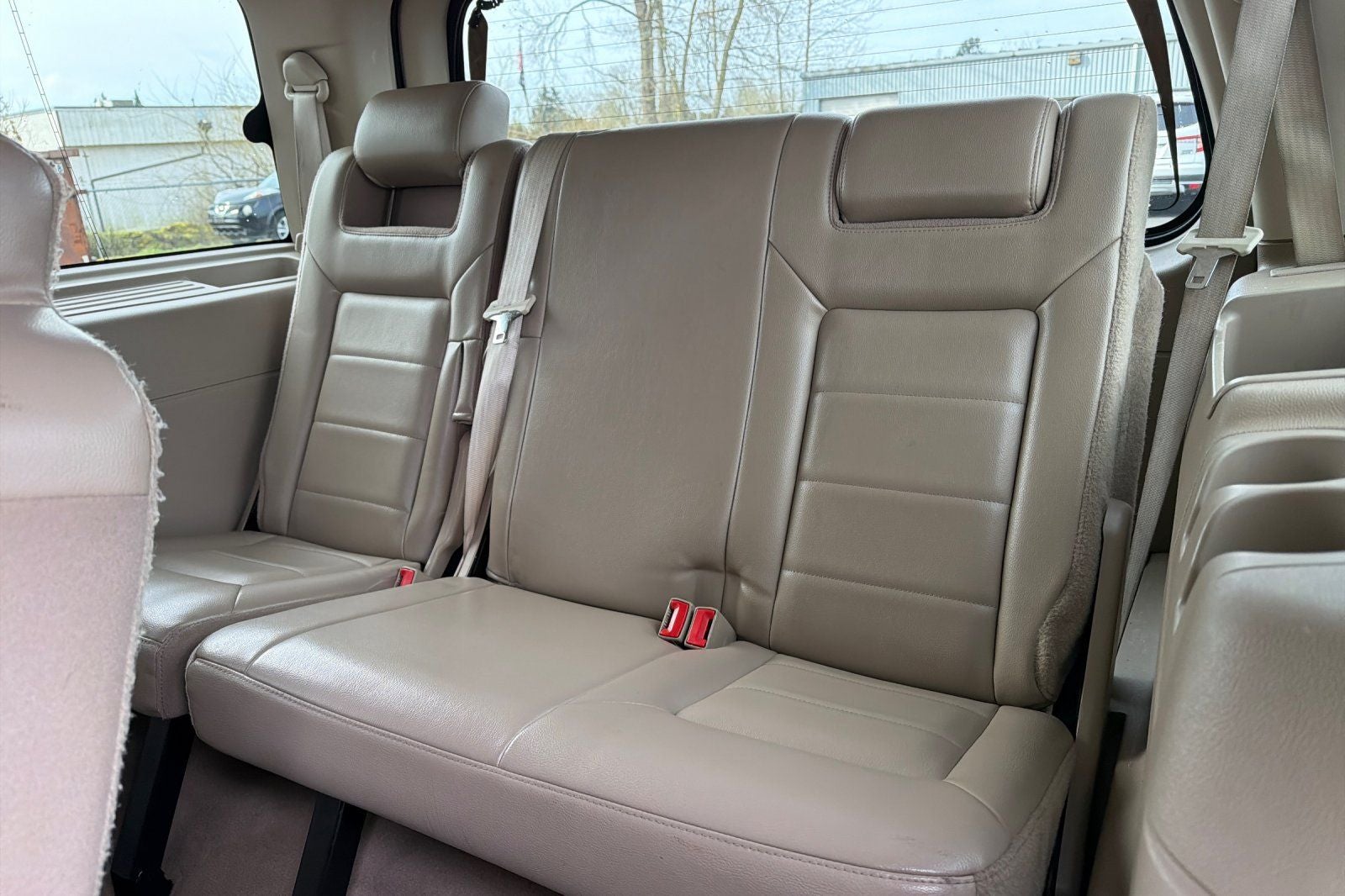

• Cloth 3rd row 60/40 split bench seat-inc: fold flat feature
• Head restraints at all outboard seating positions
• Floor carpeting
• Carpeted floor mats for 1st/2nd row
• Tilt steering column

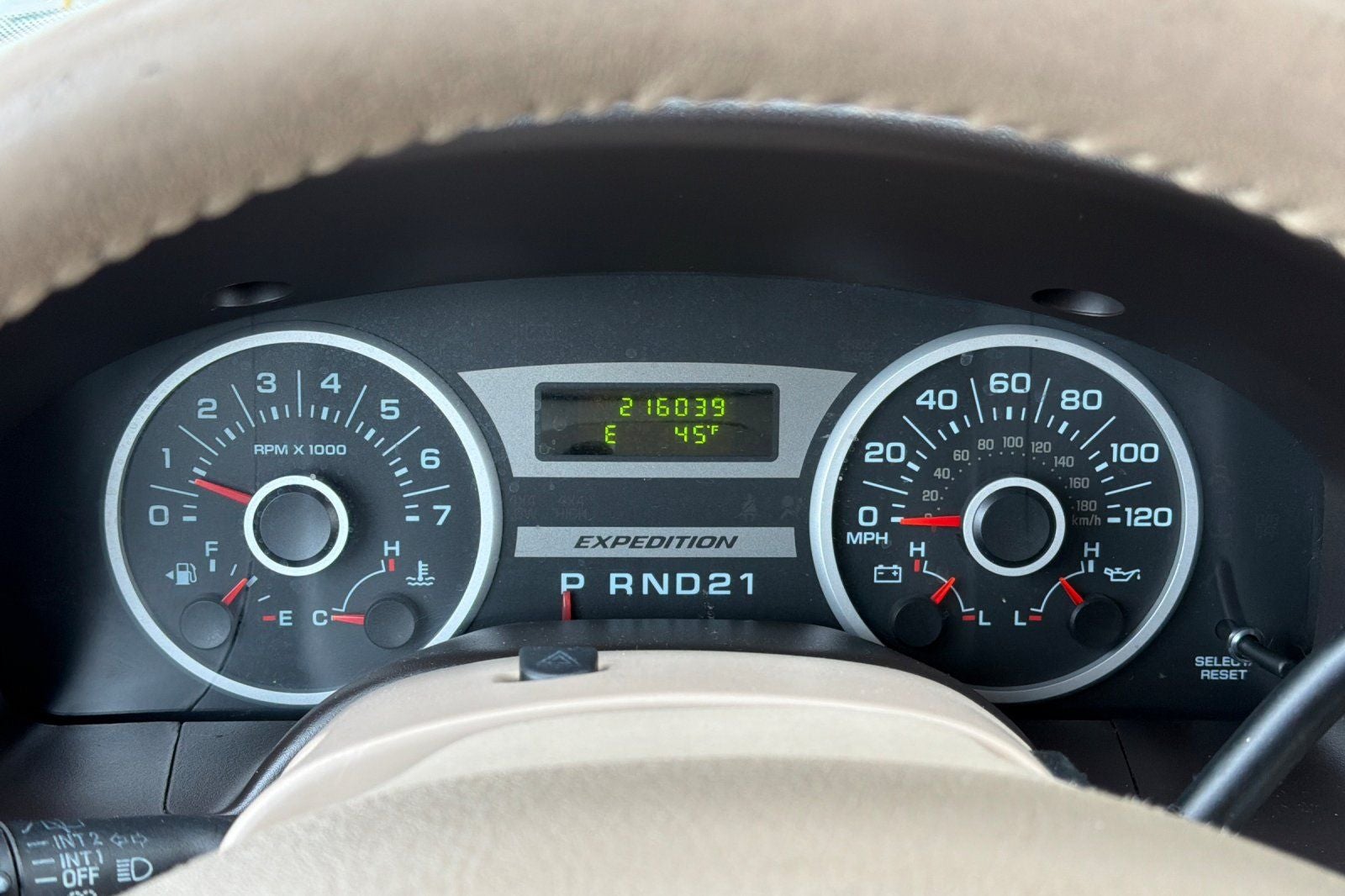

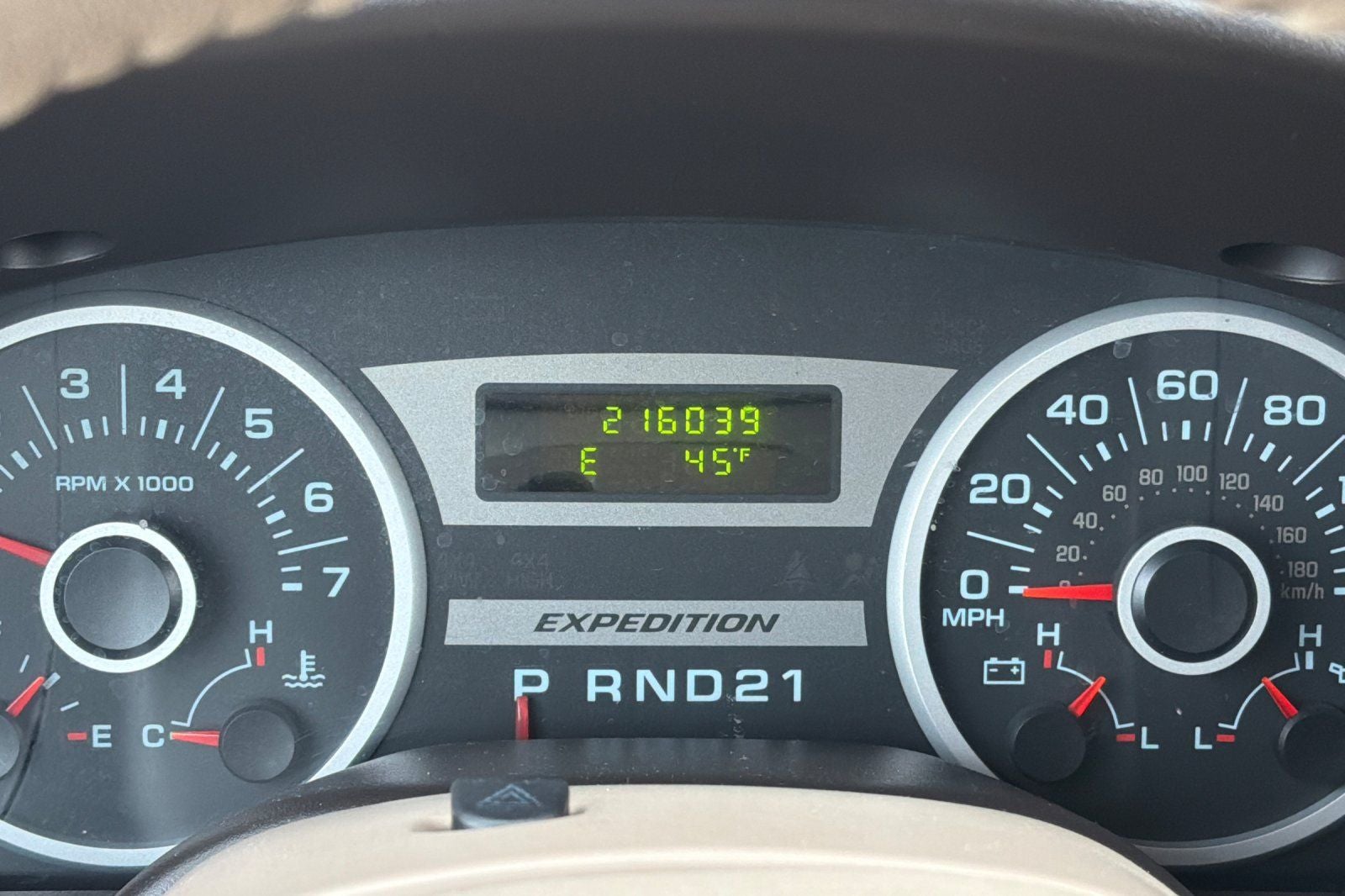

• Analog instrumentation-inc: voltmeter, oil pressure, water temp, tachometer
• Tire pressure monitoring system

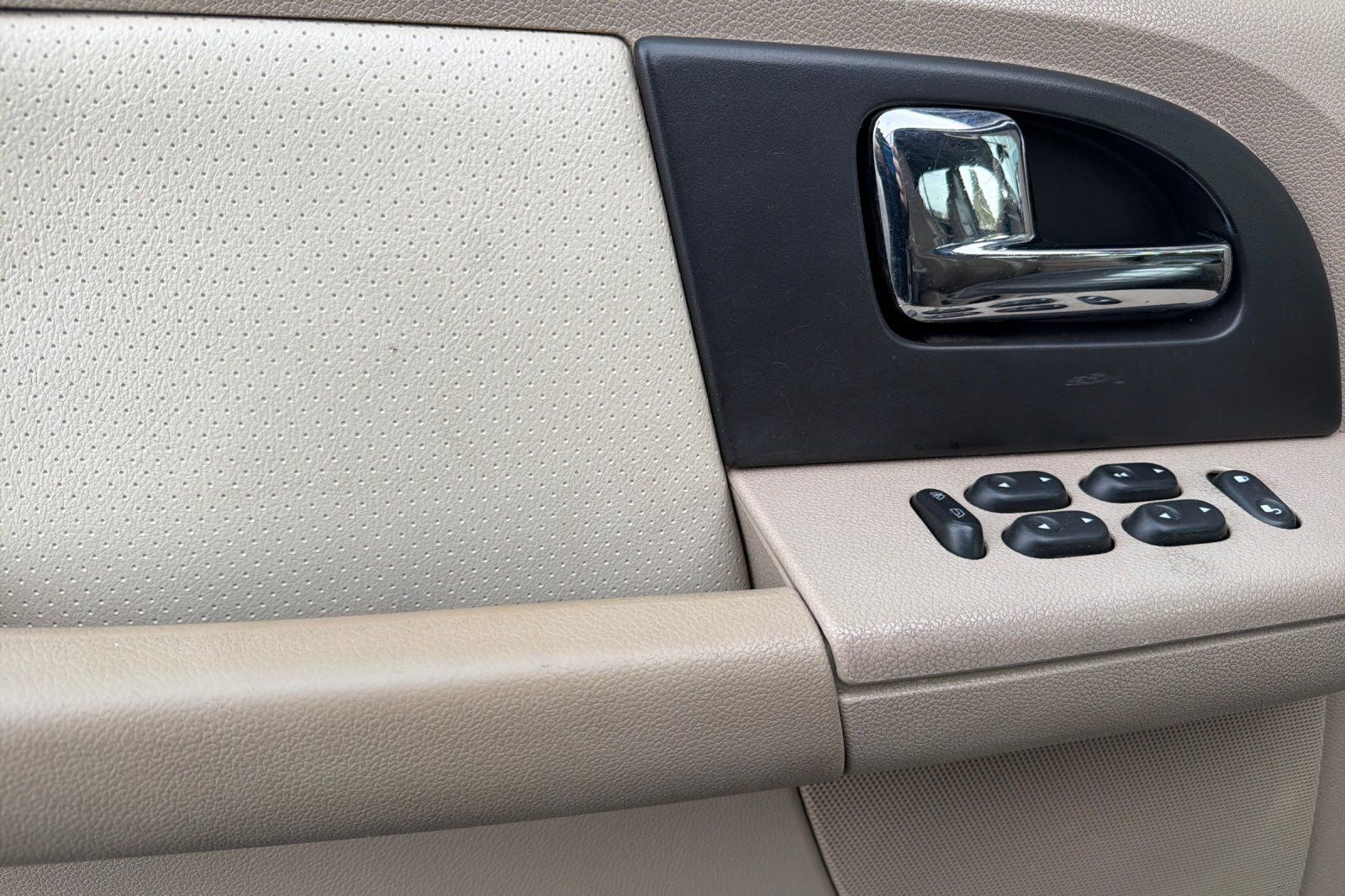

• Pwr windows w/driver one-touch-down
• Pwr door locks-inc: auto lock
• Cruise control
• SecuriLock passive anti-theft system
• Pwr accessory delay

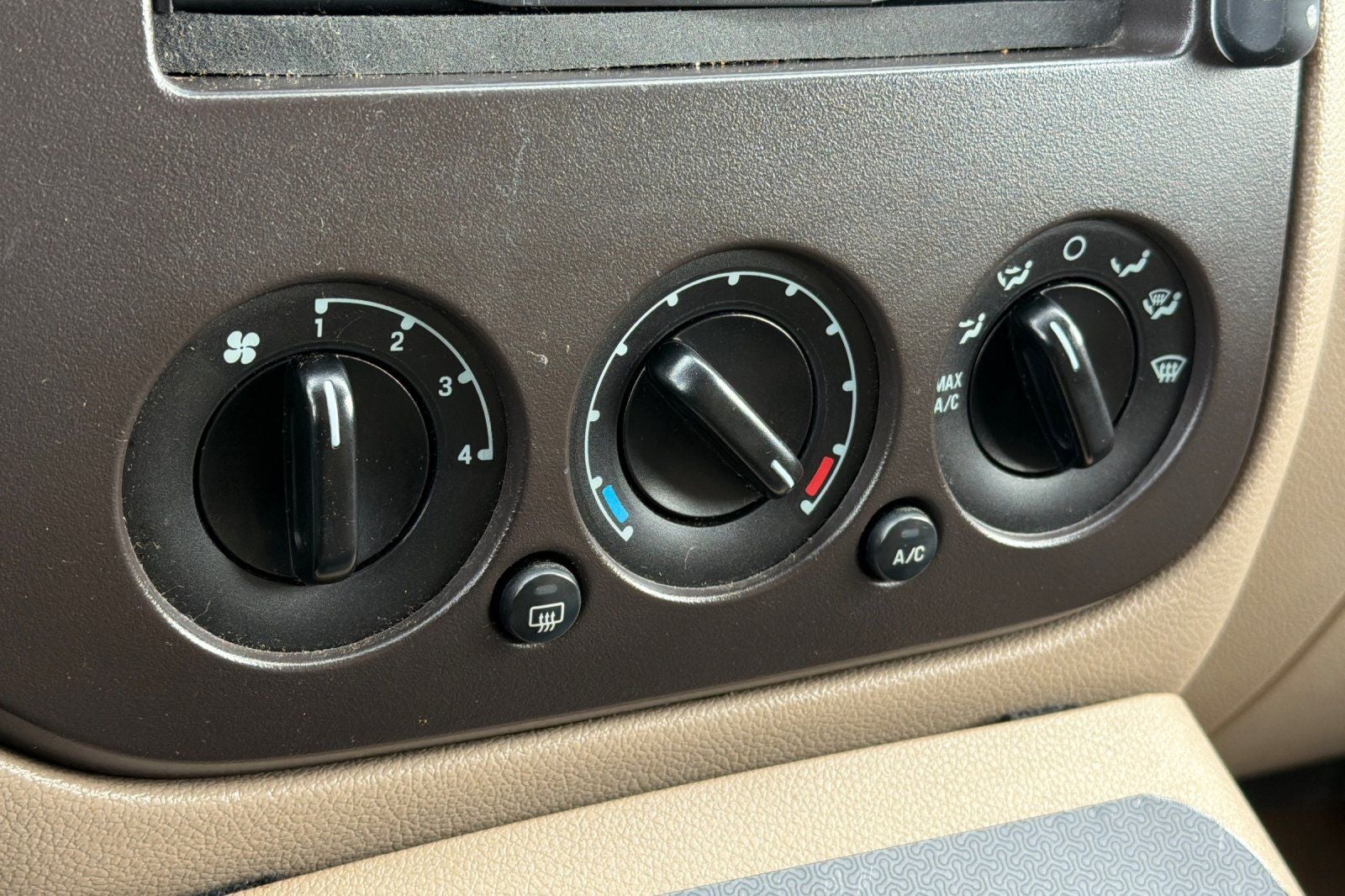

• Manual air conditioning
• Auxiliary rear air conditioner w/heater
• Rear seat heat ducts
• Rear window defroster

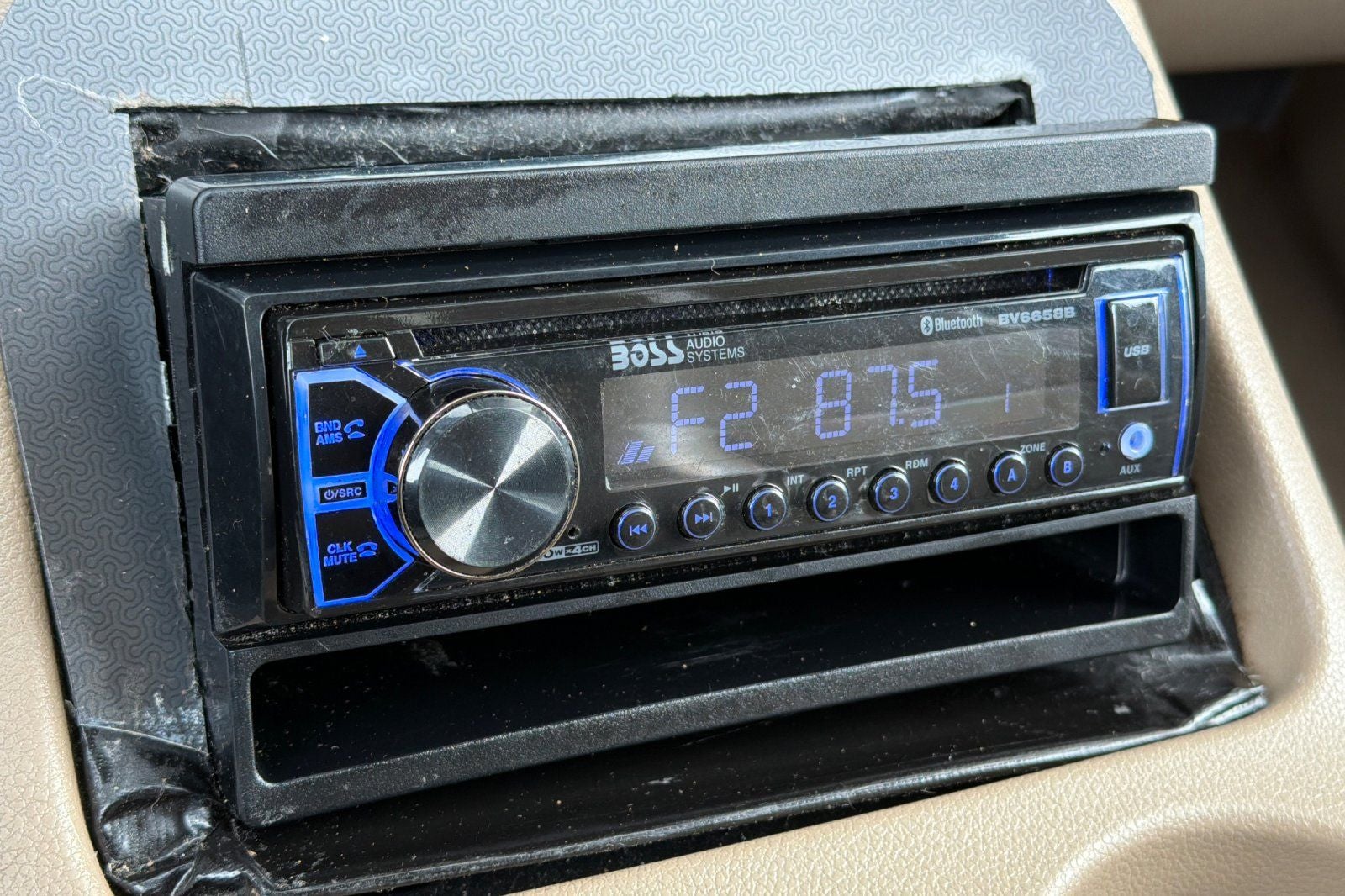

• Premium AM/FM stereo w/CD/cassette-inc: speed-compensated volume control, (4) speakers, RDS, clock, partial mute, 120-watt amp
• Concealed antenna in RH quarter glass
• Locking glove box
• Cup holders-inc: (2) instrument panel, (4) door trim panels, (3) 3rd row quarter trim panels
• Ashtray mounted on instrument panel w/light
• Cigarette lighter
• Pwr point on instrument panel
• Cargo area pwr point
• Front & rear door map pockets
• Day/night rearview mirror
• Overhead console-inc: map lights, dual sunglasses holders, front auxiliary HVAC controls, conversation mirror
• Color-keyed cloth headliner
• Color-keyed cloth sunvisors w/auxiliary visors, dual illuminated mirrors
• Assist handles-inc: color-keyed (2) front passengers, (2) second row
• Coat hooks-inc: (2) second row, (2) 3rd row
• Lights-inc: glove box, front door approach, front dome/map, rear cargo, 2nd row map lights, illuminated entry, theater lighting

• Front dual-stage airbags-inc: driver seat position & crash severity sensing
• 4-wheel anti-lock braking system w/brake assist
• 3-point safety belts on all outboard seats-inc: 1st/2nd row height-adjustable anchors
• Beltminder system-inc: buckle pretensioners, load-limiting retractors
• LATCH system on rear outboard seats
• Side intrusion door beams
• Child-proof rear door locks

5.4L SOHC SEFI 24-VALVE V8 ENGINE

• (STD)

• 3.73 Axle Ratio
• GVWR: 7,300 lbs Payload Package

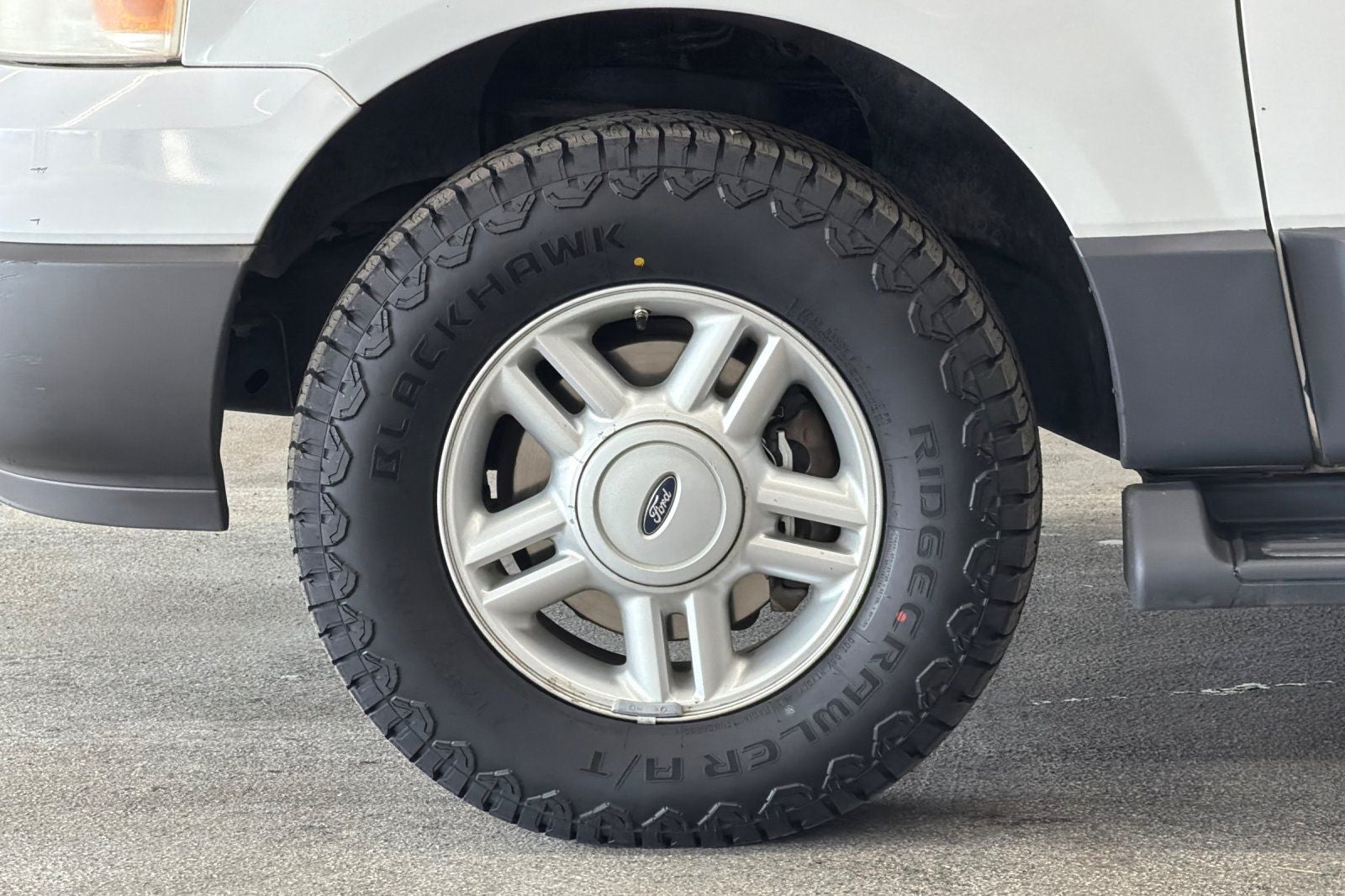

• 17" x 7.5" Aluminum Wheels
• Cloth 40/60 Power Driver Split Bench
• AM/FM Premium Stereo CD/Cassette Dual Media
• 4 Speakers
• Speed-Sensitive Wipers
• Front beverage holders
• Variably intermittent wipers
• Tilt steering wheel
• Split folding rear seat
• Speed-sensing steering
• Speed control
• Roof rack: rails only
• Remote keyless entry
• Rear window wiper
• Rear window defroster
• Rear reading lights
• Rear anti-roll bar
• Rear air conditioning
• Radio data system
• Power windows
• Power steering
• Power driver seat
• Power door mirrors
• Passenger vanity mirror
• Passenger door bin
• Panic alarm
• Overhead console
• Low tire pressure warning
• Illuminated entry
• Fully automatic headlights
• Front reading lights
• Front fog lights
• Front anti-roll bar
• Four wheel independent suspension
• Dual front impact airbags
• Driver vanity mirror
• Driver door bin
• Delay-off headlights
• CD player
• Brake assist
• Alloy wheels
• AM/FM radio
• ABS brakes
• 3rd row seats: split-bench
• Voltmeter
• Tachometer
• Front Center Armrest
• Cassette
• Air Conditioning
• 4-Wheel Disc Brakes

• Vehicle
• Rear Door Type: Liftgate
• Mileage
• EPA Fuel Economy Est - City (MPG): 14
• EPA Fuel Economy Est - Hwy (MPG): 18
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 650
• Maximum Alternator Capacity (amps): 110
• Maximum Alternator Watts: 1650
• Cooling System
• Total Cooling System Capacity (qts): 13
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3275
• Gross Axle Wt Rating - Rear (lbs): 4128
• Curb Weight - Front (lbs): 2861
• Curb Weight - Rear (lbs): 2746
• Gross Vehicle Weight Rating Cap (lbs): 7300
• Gross Combined Wt Rating (lbs): 11900
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 6000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 600
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): N/A
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): N/A
• Suspension
• Suspension Type - Front: Coil Spring
• Suspension Type - Rear: Coil Spring
• Spring Capacity - Front (lbs): 3150
• Spring Capacity - Rear (lbs): 4128
• Axle Type - Front: Double Wishbone
• Axle Type - Rear: Independent
• Axle Capacity - Front (lbs): 3350
• Axle Capacity - Rear (lbs): 4128
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): 34.93
• Shock Absorber Diameter - Rear (mm): 34.93
• Stabilizer Bar Diameter - Front (in): 1.33
• Brakes
• Brake Type: Power
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.0 x 1.18
• Rear Brake Rotor Diam x Thickness (in): 13.5 x 0.9
• Tires
• Front Tire Size: P265/70R17
• Rear Tire Size: P265/70R17
• Spare Tire Size: P265/70R17
• Front Tire Capacity (lbs): 2305
• Rear Tire Capacity (lbs): 2305
• Spare Tire Capacity (lbs): 2305
• Revolutions/Mile @ 45 mph - Front: 654
• Revolutions/Mile @ 45 mph - Rear: 654
• Revolutions/Mile @ 45 mph - Spare: 654
• Wheels
• Front Wheel Size (in): 17 x 7.5
• Rear Wheel Size (in): 17 x 7.5
• Spare Wheel Size (in): 17 x 7.5
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Variable Pwr Rack & Pinion
• Steering Ratio (:1), On Center: 20.5
• Steering Ratio (:1), At Lock: 20.5
• Turning Diameter - Curb to Curb (ft): 39.2
• Turning Diameter - Wall to Wall (ft): 40.5
• Frame
• Frame Type: Front-to-Rear Boxed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 28
• Fuel Tank Location: Midship
• Exterior Dimensions
• Wheelbase (in): 119.0
• Length, Overall w/rear bumper (in): 205.8
• Width, Max w/o mirrors (in): 78.7
• Height, Overall (in): 76.6
• Overhang, Front (in): 38.6
• Overhang, Rear w/bumper (in): 48.3
• Ground to Top of Load Floor (in): 33.3
• Ground Clearance, Front (in): 9.6
• Ground Clearance, Rear (in): 9.3
• Rear Door Opening Height (in): 35.5
• Rear Door Opening Width (in): 57.0
• Step Up Height - Front (in): - TBD -

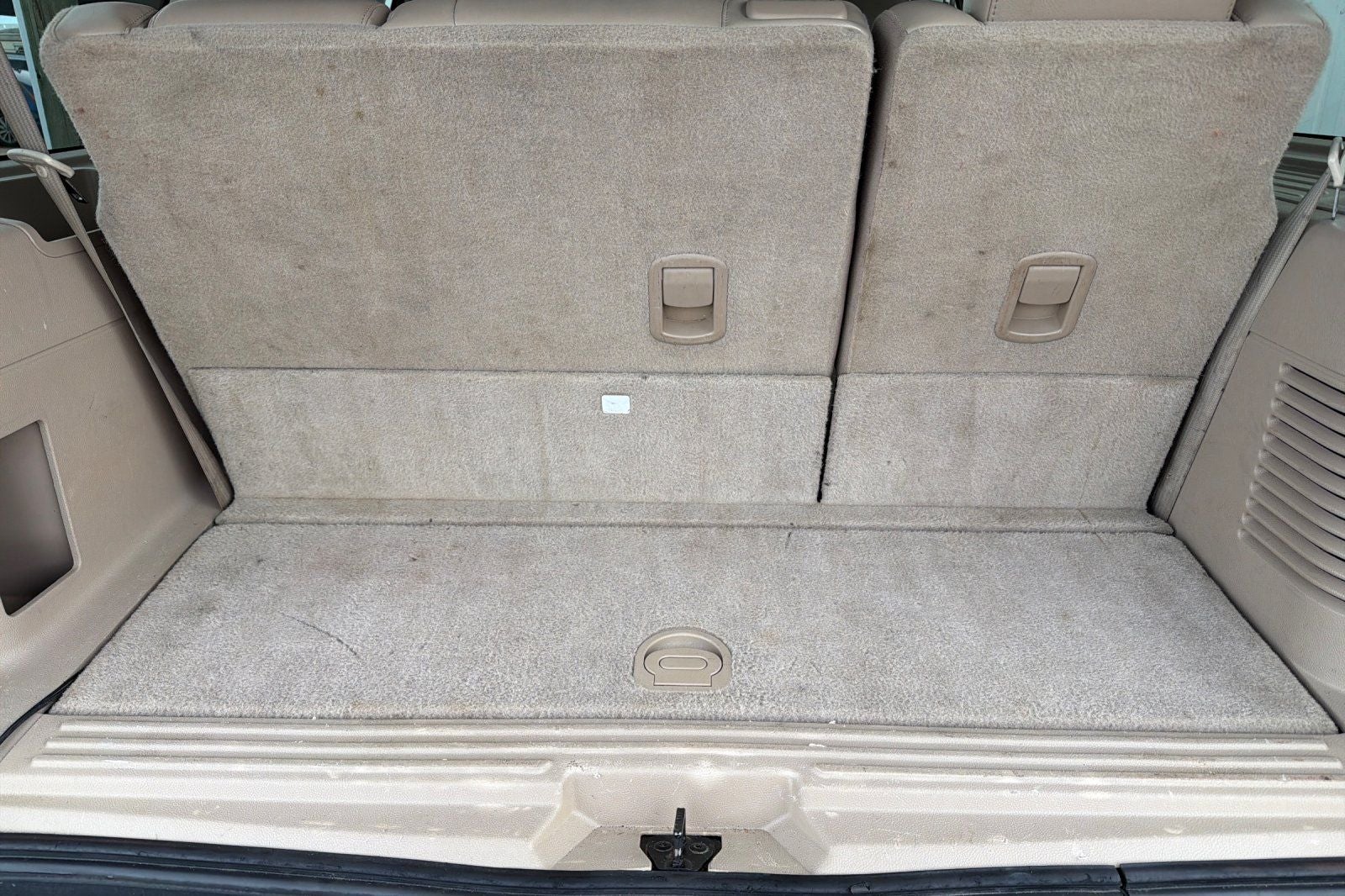

• Cargo Area Dimensions
• Cargo Area Length @ Floor to Seat 1 (in): 82.8
• Cargo Area Length @ Floor to Seat 2 (in): 44.7
• Cargo Area Length @ Floor to Seat 3 (in): - TBD -
• Cargo Area Width @ Beltline (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): 50.9
• Cargo Box (Area) Height (in): - TBD -
• Cargo Volume to Seat 1 (ft³): 110.5
• Cargo Volume to Seat 2 (ft³): 60.9
• Cargo Volume to Seat 3 (ft³): 20.7
• Interior Dimensions
• Passenger Capacity: 9
• Front Head Room (in): 39.7
• Front Leg Room (in): 41.2
• Front Shoulder Room (in): 63.4
• Front Hip Room (in): 63.0
• Second Head Room (in): 39.8
• Second Leg Room (in): 38.7
• Second Shoulder Room (in): 64.3
• Second Hip Room (in): 62.4
• Third Head Room (in): 38.2
• Third Leg Room (in): 36.3
• Third Shoulder Room (in): 60.1
• Third Hip Room (in): 54.5
• Summary

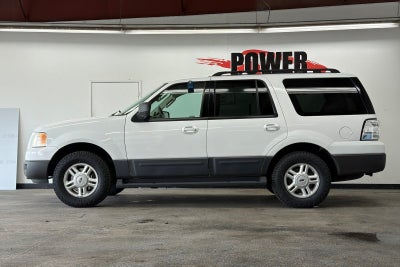

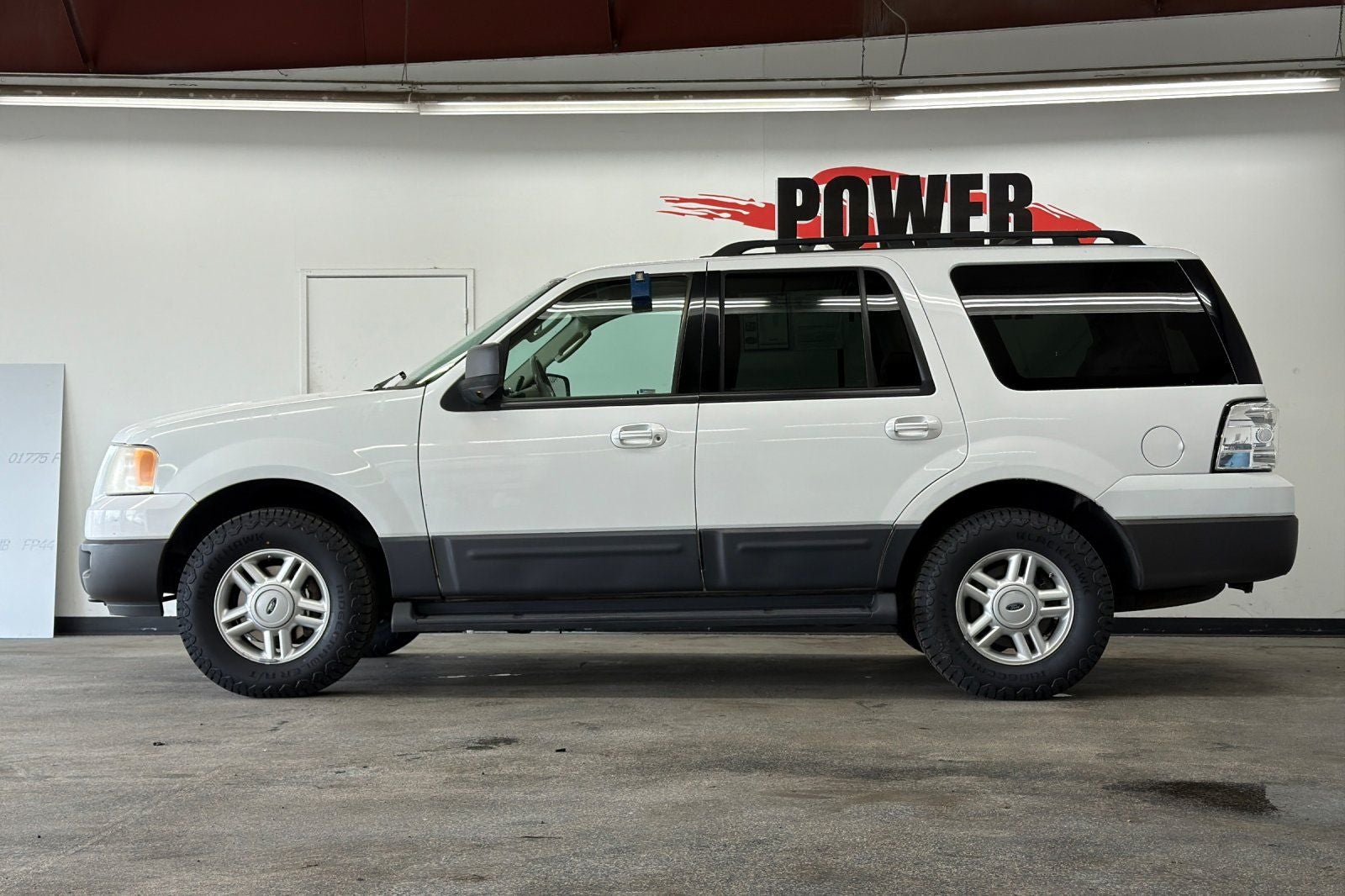

• Vehicle Name: Ford Expedition
• Body Style: 4 Door
• Body Code: 119" WB
